Macomb Group MB930UC 1-1/2 CPVC S80 Soc/Thrd Tu Ball Valve Viton

Product Description

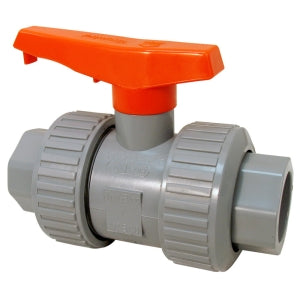

The MACOMB GROUP MB930UC is a Chemtrol® True Bloc® Corzan® HP Full-Port True Union Ball Valve with a nominal size of 1-1/2 IN. It features a socket end X FNPT connection and a CPVC body material. This valve is designed for a pressure rating of 250 PSI at 73 DEG F water non-shock and a maximum service temperature of 210 DEG F.

• Full-Port True Union Ball Valve
• Corzan® HP
• Socket End X FNPT Connection

Product Highlights

Full-Port True Union Ball Valve with Socket End X FNPT Connection, CPVC body, and FKM seal material.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: MB930UC

Technical Specifications

• Series/Model: U51TB-V/Model D
• Nominal Size: 1-1/2 IN
• Connection Type: Socket End X FNPT
• Pressure Rating: 250 PSI At 73 DEG F Water Non-Shock
• Pressure Class: SCH 80
• Temperature Rating: 210 DEG F Maximum Service
• Body Material: CPVC
• Stem Material: CPVC
• Trim Material: CPVC Ball
• Seat Material: PTFE
• Seal Material: FKM
• Material Standard: Body: ASTM F1970
• Industry Standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61, Annex G
• Lead Free: No
• Flow Co-Efficient (Cv): 117.4
• Sub Brand: Chemtrol®, True Bloc®, Corzan® HP
• Item Name: True Union Ball Valve
