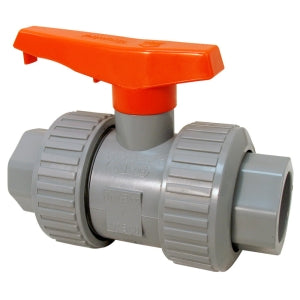

Macomb Group MB930UA CPVC S80 Soc/Thrd Tu Ball Valve Viton 1 IN

Product Description

The MACOMB GROUP MB930UA is a Chemtrol® True Bloc® Corzan® HP full-port true union ball valve with a 1 IN nominal size. It features socket end X FNPT connection type and a CPVC body material. Designed for a pressure rating of 250 PSI at 73 DEG F, this valve is suitable for various industrial applications.

• Full port design produces minimum flow restriction with the lowest possible pressure-drop
• Improved union nut grip style and flats on end connectors
• Universal product includes socket and threaded end connections

Product Highlights

CPVC ball valve with socket and threaded end connections, full port design, and a pressure rating of 250 PSI.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: MB930UA

Technical Specifications

• Nominal Size: 1 IN
• Connection Type: Socket End X FNPT
• Pressure Rating: 250 PSI At 73 DEG F Water Non-Shock
• Pressure Class: SCH 80
• Temperature Rating: 210 DEG F Maximum Service
• Body Material: CPVC
• Stem Material: CPVC
• Trim Material: CPVC Ball
• Seat Material: PTFE
• Seal Material: FKM
• Material Standard - Body: ASTM F1970
• Industry Standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61, Annex G
• Lead Free: No
• Flow Co-Efficient (Cv): 58.2
• Sub Brand: Chemtrol®, True Bloc®, Corzan® HP
• Item Name: True Union Ball Valve
