Macomb Group D326015 1-1/2 PVC-DWV H X S 1/16 Bend

Product Description

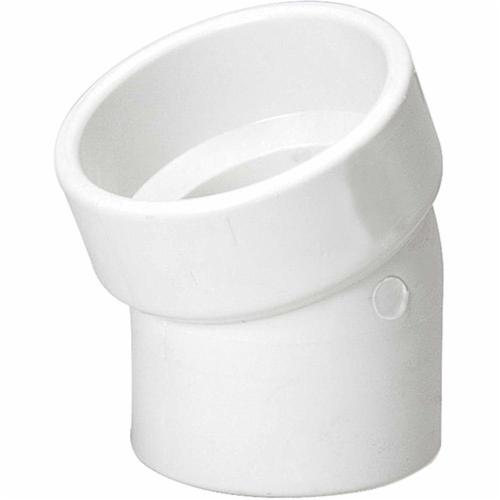

The MACOMB GROUP D326015 is a DWV 1/16 Street Bend with a nominal size of 1-1/2 IN. Constructed from PVC, it conforms to material standard ASTM D2665 Type 1 Cell Class 12454B. This bend features a Hub X Spigot connection type and complies with industry standards ASTM D3311, NSF Listed, and UPC Certified.

• DWV 1/16 Street Bend
• PVC Material
• Hub X Spigot Connection

Product Highlights

This PVC DWV street bend is ideal for drainage, waste, and vent systems, ensuring code compliance and reliable connections.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: D326015

Technical Specifications

• Nominal Size: 1-1/2 IN
• Connection Type: Hub X Spigot
• Material: PVC
• Material Standard: ASTM D2665 Type 1 Cell Class 12454B
• Industry Standards: ASTM D3311, NSF Listed, UPC Certified
• Other Physical Dimension: 1-5/16 IN Center To Female End, 9/16 IN Center To Male End
• Item Name: DWV 1/16 Street Bend
