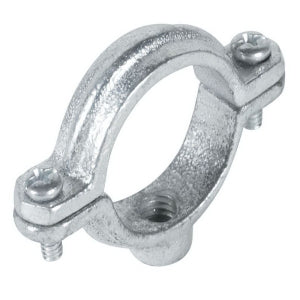

Macomb Group B3198RZ-1/2 Pltd Extension Split Clamp 3/8 Rod Thrd

Product Description

The MACOMB GROUP B3198RZ-1/2 is a Bolt Thread Extension Split Clamp from the Series B3198R. It has a nominal size of 1/2 IN and a rod size of 3/8-16 UNC. Constructed from malleable iron with an electro-galvanized finish, it conforms to industry standards MSS ANSI/SP-69 and SP-58 Type 12, and Federal Specification A-A-1192A Type 12.

• Nominal Size: 1/2 IN
• Rod Size: 3/8-16 UNC
• Constructed from malleable iron

Product Highlights

Electro-galvanized split clamp designed for bolt thread extension, ensuring secure and reliable connections.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3198RZ-1/2

Technical Specifications

• Series/Model: Series B3198R
• Nominal Size: 1/2 IN
• Rod Size: 3/8-16 UNC
• Material: Malleable Iron
• Industry Standards: MSS ANSI/SP-69 And SP-58 Type 12, Federal Specification A-A-1192A Type 12
• Finish/Color: Electro-Galvanized
• Other Physical Dimension: 7/8 IN Center To Top
