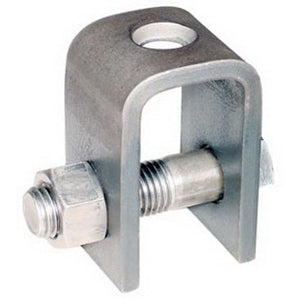

Macomb Group B3083-5/8PLN 5/8 B3083 CS Welded Beam Attachment

Product Description

The MACOMB GROUP B3083-5/8PLN welded beam attachment is designed for attaching a hanger rod to the bottom of structural steel. Constructed from low carbon steel, it accommodates a 5/8-11 UNC rod size and a 3/4 IN bolt size. It has a 1-1/4 IN jaw opening and complies with MSS ANSI/MSS-SP-69 And SP-58 Type 22 and Federal Specification WW-H-171E And A-A-1192A Type 22.

• Welded Beam Attachment
• Low Carbon Steel Construction
• Complies with MSS ANSI/MSS-SP-69 And SP-58 Type 22

Product Highlights

This welded beam attachment is made of low carbon steel and adheres to industry standards for structural steel applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3083-5/8PLN

Technical Specifications

• Series/Model: Series B3083
• Rod Size: 5/8-11 UNC
• Bolt Size: 3/4 IN
• Load Capacity: 1692 LB At 750 DEG F
• Jaw Opening: 1-1/4 IN
• Material: Low Carbon Steel
• Industry Standards: MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22
• Finish/Color: Plain
• Center Of Cross Bolt To Bottom Of Attachment: 2 IN
• Center Of Cross Bolt To Top Of Attachment: 7/8 IN
• Hole Diameter: 13/16 IN
• Maximum Load: 2160 LB At 650 DEG F
• Steel Size: 1/4 X 2 IN
