Macomb Group B3083-3/4PLN Welded Beam Attachment 3/4

Product Description

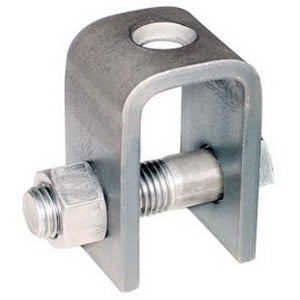

The MACOMB GROUP B3083-3/4PLN is a welded beam attachment designed for connecting a hanger rod to structural steel. It features a 3/4-10 UNC rod size, a 7/8 IN bolt size, and a 1-1/2 IN jaw opening. Constructed from low carbon steel with a plain finish, it supports a 2530 LB load at 750 DEG F.

• Features a 3/4-10 UNC rod size and 7/8 IN bolt size.
• Constructed from low carbon steel for durability.
• Complies with MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22.

Product Highlights

This welded beam attachment is ideal for supporting structures, ensuring secure and reliable connections in various construction and industrial applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B3083-3/4PLN

Technical Specifications

• Series/Model: Series B3083
• Rod Size: 3/4-10 UNC
• Bolt Size: 7/8 IN
• Load Capacity: 2530 LB At 750 DEG F
• Jaw Opening: 1-1/2 IN
• Material: Low Carbon Steel
• Industry Standards: MSS ANSI/MSS-SP-69 And SP-58 Type 22, Federal Specification WW-H-171E And A-A-1192A Type 22
• Finish/Color: Plain
• Center Of Cross Bolt To Bottom Of Attachment: 2 IN
• Center Of Cross Bolt To Top Of Attachment: 1-1/8 IN
• Hole Diameter: 15/16 IN
• Maximum Load: 3230 LB At 650 DEG F
• Item Name: Welded Beam Attachment
