Macomb Group B063750 3/8 x 1/2 Cast C x FPT 90 Red Ell

Product Description

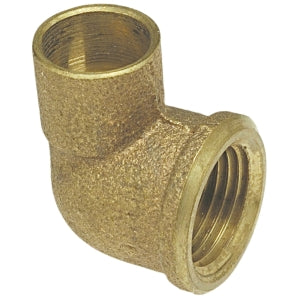

The MACOMB GROUP B063750 is a solder joint 90 DEG reducing elbow. It is made from brass material conforming to ASTM B584 and adheres to industry standards ASME B16.18. The elbow features a copper x FNPT connection, a tube size of 3/8 IN, and a nominal size of 1/2 IN. Its center to end dimension is 13/16 IN.

• Solder Joint
• 90 DEG Reducing Elbow
• Brass Material

Product Highlights

This cast brass solder pressure 90 DEG elbow is suitable for residential and commercial plumbing applications, providing a 90-degree change in pipeline direction and adapting from solder to threaded connections.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: B063750

Technical Specifications

• Series/Model: Model 707-3R
• Tube Size: 3/8 IN
• Nominal Size: 1/2 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Material Standard: ASTM B584
• Industry Standards: ASME B16.18
• Other Physical Dimension: 13/16 IN Center To End
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint 90 DEG Reducing Elbow
