Macomb Group 660-020-000 2 600 FS RF Sock-Weld Flg

Product Description

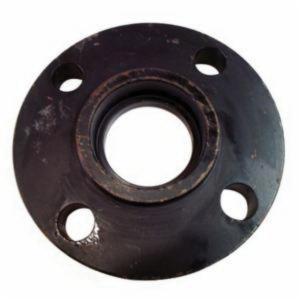

The MACOMB GROUP 660-020-000 is a 2 600 FS RF Sock-Weld Flg. This Class 600 Forged Steel Raised Face Socket Weld Flange has a 2 IN nominal size and a 6-1/2 IN outside diameter. Constructed from Forged Steel material standard ASTM A105/ASME SA105, it is domestic.

• Nominal size of 2 IN
• Constructed from Forged Steel
• Maximum pressure of 1480 PSI

Product Highlights

This socket weld flange is ideal for applications requiring a robust and reliable connection. It meets ASME B16.5 industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 660-020-000

Technical Specifications

• Item Name: Socket Weld Flange
• Pressure Class: Class 600
• Nominal Size: 2 IN
• Outside Diameter: 6.5 IN
• Nominal Bore Size: 2.44 X 1.94 IN
• Thickness: 1 IN
• Face Type: Raised Face
• Bolt Circle Diameter: 5 IN
• Number Of Bolts: 8
• Bolt Hole Diameter: 0.75 IN
• Hub Diameter: 3.31 IN
• Length Through Hub: 1.44 IN
• Material: Forged Steel
• Material Standard: ASTM A105/ASME SA105
• Maximum Pressure: 1480 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME B16.5
• Depth Of Socket: 0.69 IN
• Country of Origin: Domestic
