Macomb Group 4247-007 Fp Cpvc Sw Cap 3/4 IN

Product Description

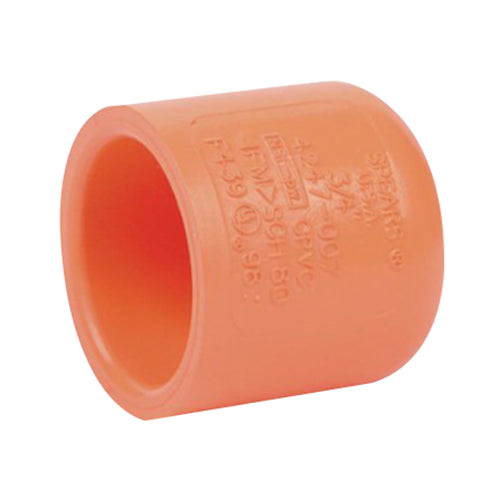

The MACOMB GROUP 4247-007 is a FlameGuard® cap with a 3/4 IN nominal size. Constructed from CPVC material, it features a socket weld connection. This cap is molded and suitable for a maximum pressure of 175 PSI at 150 DEG F. It meets industry standards such as UL Listing, FM Global, LPCB Approval, and NSF Certification.

• FlameGuard® Cap
• Socket Weld Connection
• CPVC Material
• Orange Finish

Product Highlights

The 4247-007 cap is corrosion resistant and provides superior flow characteristics for lower friction losses.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 4247-007

Technical Specifications

• Nominal Size: 3/4 IN
• Connection Type: Socket Weld
• Outside Diameter: 1-5/16 IN
• Length: 1-5/16 IN
• Material: CPVC
• Material Standard: ASTM D1784 Type IV Grade I Cell Class 23447
• Finish/Color: Orange
• Method Of Manufacturer: Molded
• Maximum Pressure: 175 PSI At 150 DEG F
• Industry Standards: UL Listed, FM Global, LPCB Approved, NSF Certified
• Sub Brand: FlameGuard
• Item Name: Cap
