Macomb Group 301-108NL Dielectric Union Fnpt X Sweat Lead Free 2 IN

Product Description

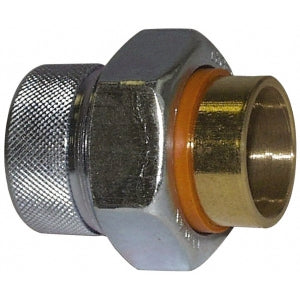

The MACOMB GROUP 301-108NL is a 2 IN dielectric union with FNPT X Sweat connection. Constructed from forged steel with a galvanized finish, this union is designed for use in applications requiring corrosion resistance. It is suitable for use in systems with a maximum pressure of 200 PSI and temperatures up to 180 DEG F.

• Dielectric Union
• FNPT X Sweat Connection
• Forged Steel Material

Product Highlights

The MACOMB GROUP 301-108NL Dielectric Union is made of galvanized forged steel and features a FNPT X Sweat connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 301-108NL

Technical Specifications

• Nominal Size: 2 IN
• Connection Type: FNPT X Sweat
• Material: Forged Steel
• Finish/Color: Galvanized
• Maximum Pressure: 200 PSI
• Temperature Rating: 180 DEG F
• Industry Standards: ANSI/ASME B16.39, ANSI/ASME B1.20.1, ANSI/ASME B16.18
• Meets NSF 372 Lead Content Requirement: Yes
• WQA Certified: Yes
• U.S Federal Public Law 111-380 Certified: Yes
• Other Physical Dimension: 3.51 IN Width Across Flat
