Macomb Group 301-107NL Dielectric Union 1-1/2 IN

Product Description

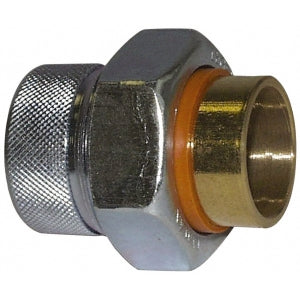

The MACOMB GROUP 301-107NL Dielectric Union, Model T-571NL, with a nominal size of 1-1/2 IN, features FNPT X Sweat connection type. Constructed from forged steel with a galvanized finish, it withstands a maximum pressure of 200 PSI and a temperature rating of 180 DEG F.

• High strength, galvanized forged steel construction make them ideal for residential and commercial applications
• Designed to reduce stray current and galvanic corrosion where two dissimilar metals are joined
• Self-aligning, non-conductive elastomer gasket and thermoplastic insert create a positive seal and complete isolation between the tubing and piping ends

Product Highlights

This dielectric union is suitable for potable water installations, fully compliant with all lead-free plumbing laws. It adheres to ANSI/ASME B16.39, ANSI/ASME B1.20.1, and ANSI/ASME B16.18 standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 301-107NL

Technical Specifications

• Series/Model: Model T-571NL
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT X Sweat
• Material: Forged Steel
• Finish/Color: Galvanized
• Length: 2.53 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: 180 DEG F
• Industry Standards: ANSI/ASME B16.39, ANSI/ASME B1.20.1, ANSI/ASME B16.18, Meets NSF 372 Lead Content Requirement, WQA, U.S Federal Public Law 111-380 Certified
• Other Physical Dimension: 2.62 IN Width Across Flat
• Item Name: Dielectric Union
