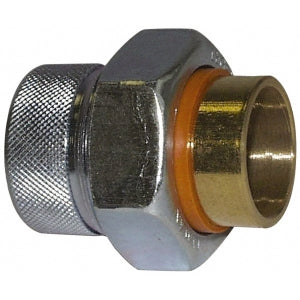

Macomb Group 301-106NL Dielectric Union 1-1/4 IN

Product Description

The MACOMB GROUP 301-106NL is a 1-1/4 IN dielectric union designed to reduce stray current and galvanic corrosion when joining dissimilar metals. Constructed from forged steel with a galvanized finish, it ensures a positive seal and complete isolation between tubing and piping ends. Suitable for residential and commercial applications.

• Lead Free
• Connection Type: FNPT X Sweat
• Maximum Pressure: 200 PSI

Product Highlights

This dielectric union features galvanized forged steel construction and is designed for potable water installations.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 301-106NL

Technical Specifications

• Nominal Size: 1-1/4 IN
• Connection Type: FNPT X Sweat
• Material: Forged Steel
• Finish/Color: Galvanized
• Length: 2.48 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: 180 DEG F
• Industry Standards: ANSI/ASME B16.39, ANSI/ASME B1.20.1, ANSI/ASME B16.18, Meets NSF 372 Lead Content Requirement, WQA, U.S Federal Public Law 111-380 Certified
• Other Physical Dimension: 2.26 IN Width Across Flat
• Item Name: Dielectric Union
