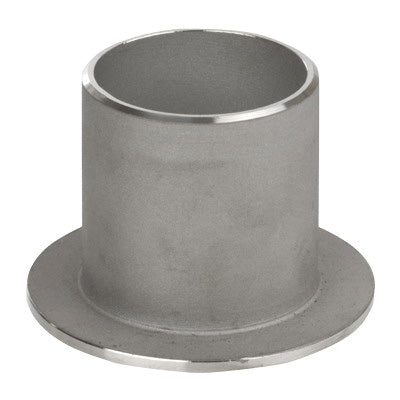

Macomb Group 1200104SSECI 12 304ss s10 type c stub end global

Product Description

The MACOMB GROUP 1200104SSECI is a Type C Stub End with a 12 IN nominal size. Constructed from 304 Stainless Steel, it adheres to ASTM A403 and ASME SA403/SA403M material standards. This stub end features a buttweld connection type and SCH 10 schedule, suitable for various industrial applications.

• Constructed from 304 Stainless Steel
• Features a buttweld connection type
• Complies with ASTM A403 and ASME SA403/SA403M material standards

Product Highlights

Durable 304 stainless steel stub end with buttweld connection and industry standard compliance.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 1200104SSECI
• Country of Origin: Import

Technical Specifications

• Nominal Size: 12 IN
• Lap Diameter: 15 IN
• Fillet Radius: 0.079 - 0.197 IN
• Connection Type: Buttweld
• Schedule: SCH 10
• Wall Thickness: 0.179 IN
• Material: 304 Stainless Steel
• Material Standard: ASTM A403, ASME SA403/SA403M
• Inside Diameter: 12.392 IN
• Outside Diameter: 12-3/4 IN
• Length: 6 IN
• Industry Standards: MSS-SP-43
• Lap Thickness: 23/128 IN
• Item Name: Stub End
• Type: Type C
