Macomb Group 10231297 1 C X C 90 Ell Cln For Oxy

Product Description

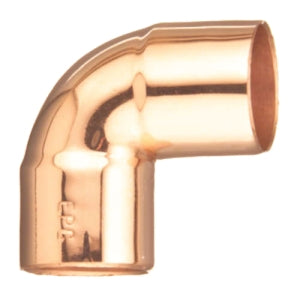

The MACOMB GROUP 10231297 is a KleenFit™ industrial/residential solder joint close ruff 90 DEG elbow. Constructed from copper, it has a tube size of 1 IN and an outside diameter of 1-1/8 IN. It is designed to withstand a maximum pressure of 490 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Elbow
• O2 Cleaned

Product Highlights

This 90 DEG elbow is suitable for use in medical facilities, food processing plants, clean room applications, and research labs.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10231297

Technical Specifications

• Tube Size: 1 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 1-1/8 IN
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• O2 Cleaned: Yes
• Sub Brand: KleenFit™
• Item Name: Solder Joint Close Ruff 90 DEG Elbow
• Type: Industrial/Residential
