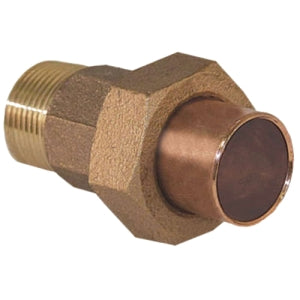

Macomb Group 10056712 Cast C X MPT Lead Free Union

Product Description

The MACOMB GROUP 10056712 is a lead-free cast brass solder joint union designed for industrial or residential applications. This Model 4733-4 union features a 1-inch tube size and nominal size, with a copper x MNPT connection type. Constructed from brass conforming to ASTM B75 and UNS C12200 material standards, it withstands a maximum pressure of 490 PSI and temperatures from -20 to 100 DEG F.

• Lead Free
• Solder Joint Union
• Connection Type: Copper X MNPT

Product Highlights

Lead-free cast brass solder joint union suitable for industrial/residential use, featuring copper x MNPT connections and compliant with ASME/ANSI B16.18 and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056712

Technical Specifications

• Series/Model: Model 4733-4
• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Item Name: Solder Joint Union
• Type: Industrial/Residential
