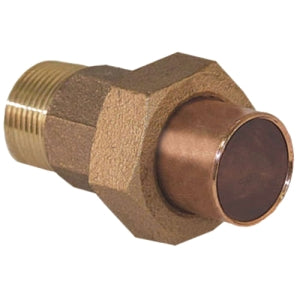

Macomb Group 10056706 Cast C X Mpt Lead Free Union 2 IN

Product Description

The MACOMB GROUP 10056706 is an industrial/residential solder joint union. This Model 4733-4 union features a 2 IN tube size and nominal size, with a Copper X MNPT connection type. Constructed from brass to ASTM B75 and UNS C12200 material standards, it withstands a maximum pressure of 360 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• Connection Type: Copper X MNPT

Product Highlights

This lead-free union is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified, and ROHS 2011/95/EC compliant.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056706

Technical Specifications

• Series/Model: Model 4733-4
• Tube Size: 2 IN
• Nominal Size: 2 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 360 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Item Name: Solder Joint Union
• Type: Industrial/Residential
