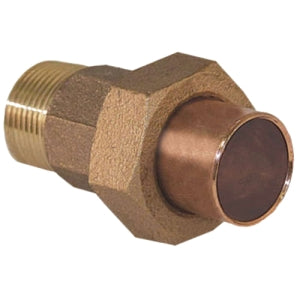

Macomb Group 10056704 Cast C X MPT Lead Free Union 1-1/2 IN

Product Description

The MACOMB GROUP 10056704 is an industrial/residential solder joint union. This lead-free union features a 1-1/2 IN tube size and a copper X MNPT connection type. Constructed from brass conforming to ASTM B75 and UNS C12200 material standards, it withstands a maximum pressure of 405 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• 1-1/2 IN Tube Size

Product Highlights

The MACOMB GROUP 10056704 union is ideal for industrial and residential applications requiring a reliable, lead-free solder joint.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056704

Technical Specifications

• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Type: Industrial/Residential
• Cast: Yes
