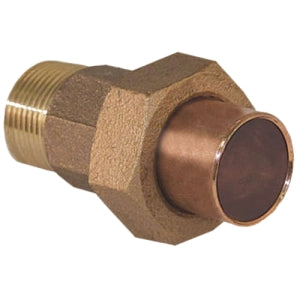

Macomb Group 10056702 Cast C X MPT Lead Free Union 1/2 IN

Product Description

The MACOMB GROUP 10056702 is an industrial/residential solder joint union. This model 4733-4 union features a 1/2 IN tube size and nominal size with a copper X MNPT connection type. Constructed from brass that conforms to ASTM B75 and UNS C12200 material standards. It is lead-free and can withstand a maximum pressure of 720 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• Connection Type: Copper X MNPT

Product Highlights

The MACOMB GROUP 10056702 union is ideal for industrial and residential applications requiring a lead-free solder joint.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056702

Technical Specifications

• Series/Model: Model 4733-4
• Tube Size: 1/2 IN
• Nominal Size: 1/2 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 720 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Item Name: Solder Joint Union
• Type: Industrial/Residential
