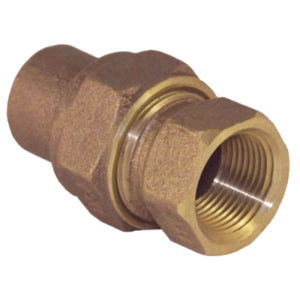

Macomb Group 10056696 1-1/4 Cast C X FPT Lead Free Union

Product Description

The MACOMB GROUP 10056696 is an industrial/residential solder joint union. This Model 4733-3 union has a tube size and nominal size of 1-1/4 IN. Constructed from brass to ASTM B75 and UNS C12200 standards, it is designed for a maximum pressure of 435 PSI and a temperature range of -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• Connection Type: Copper X FNPT

Product Highlights

This lead-free brass union is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified, and ROHS 2011/95/EC compliant.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056696

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 1-1/4 IN
• Nominal Size: 1-1/4 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Item Name: Solder Joint Union
• Type: Industrial/Residential
