Macomb Group 10056690 1-1/2 Cast C X FPT Lead Free Union

Product Description

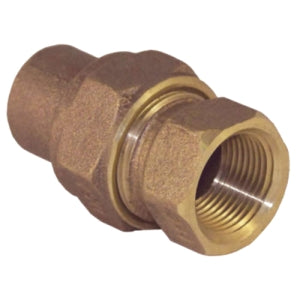

The MACOMB GROUP 10056690 is an industrial/residential solder joint union. This lead-free union, Model 4733-3, has a tube size and nominal size of 1-1/2 IN. Constructed from brass to ASTM B75 and UNS C12200 standards, it features a copper X FNPT connection type. It withstands a maximum pressure of 405 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• Copper X FNPT

Product Highlights

Lead-free cast brass solder joint union with copper X FNPT connection. Suitable for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056690

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: Yes
• O2 Cleaned: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
