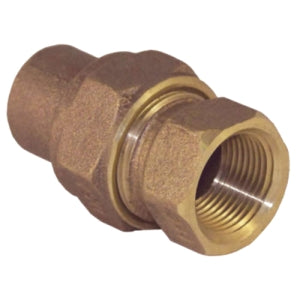

Macomb Group 10056684 1/2 cast C x FPT lead free union

Product Description

The MACOMB GROUP 10056684 is an industrial/residential solder joint union. This lead-free cast brass union features a 1/2 IN nominal size and a copper x FNPT connection type. Constructed from brass conforming to ASTM B75 and UNS C12200 material standards, it withstands a maximum pressure of 720 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Lead Free
• Copper X FNPT connection

Product Highlights

The MACOMB GROUP 10056684 union ensures secure and compliant connections in plumbing and industrial applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056684

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 1/2 IN
• Nominal Size: 1/2 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 720 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: Yes
• O2 Cleaned: No
• Weight: 0.290 LB
