Macomb Group 10056680 3 Cast C X C Lead Free Union

Product Description

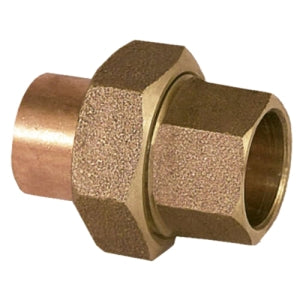

The MACOMB GROUP 10056680 is an industrial/residential solder joint union. Constructed from brass to ASTM B75 and UNS C12200 material specifications, this 3 IN union is designed for copper connections. It withstands a maximum pressure of 315 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Tube Size: 3 IN
• Lead Free

Product Highlights

Lead-free cast brass solder joint union suitable for industrial or residential applications. Compliant with ASME/ANSI B16.18 and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056680

Technical Specifications

• Tube Size: 3 IN
• Connection Type: Copper
• Material: Brass
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• Maximum Pressure: 315 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Lead Free: Yes
• Type: Industrial/Residential
