Macomb Group 10056678 Cast C X C Lead Free Union 1-1/2

Product Description

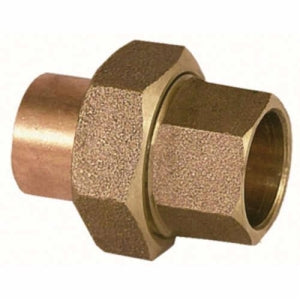

The MACOMB GROUP 10056678 is a 1-1/2 inch lead-free cast brass solder joint union designed for industrial and residential applications. It is made from UNS C12200 brass, meeting ASTM B75 material standards, and is certified to ASME/ANSI B16.18 and NSF/ANSI Standard 61. This union can withstand a maximum pressure of 405 PSI and temperatures from -20 to 100 DEG F.

• Constructed from lead-free cast brass.
• Suitable for both industrial and residential use.
• Compliant with ASME/ANSI B16.18 and NSF/ANSI Standard 61.

Product Highlights

Lead-free cast brass solder joint union for connecting copper pipes in industrial or residential plumbing systems.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056678

Technical Specifications

• Cast: Yes
• Connection Type: Copper
• DWV: No
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Lead Free: Yes
• Material: Brass
• Material Specification: UNS C12200
• Material Standard: ASTM B75
• Maximum Pressure: 405 PSI
• O2 Cleaned: No
• Series/Model: Model 4733
• Temperature Rating: -20 To 100 DEG F
• Tube Size: 1-1/2 IN
• Type: Industrial/Residential
• Wrot: No
