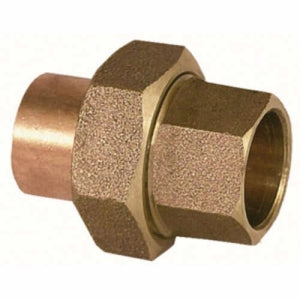

Macomb Group 10056674 Cast C X C Lead Free Union

Product Description

The MACOMB GROUP 10056674 is a lead-free cast brass solder joint union designed for industrial and residential applications. This 2-inch copper union is constructed from UNS C12200 brass, meeting ASTM B75 material standards, and can withstand a maximum pressure of 360 PSI. It is compliant with ASME/ANSI B16.18, NSF/ANSI Standard 61, and ROHS 2011/95/EC.

• Constructed from lead-free cast brass.
• Suitable for industrial and residential use.
• Compliant with industry standards ASME/ANSI B16.18, NSF/ANSI Standard 61, and ROHS 2011/95/EC.

Product Highlights

Lead-free cast brass solder joint union for connecting 2-inch copper pipes in industrial or residential plumbing systems.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10056674

Technical Specifications

• Cast: Yes
• Connection Type: Copper
• DWV: No
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Lead Free: Yes
• Material: Brass
• Material Specification: UNS C12200
• Material Standard: ASTM B75
• Maximum Pressure: 360 PSI
• O2 Cleaned: No
• Series/Model: Model 4733
• TecTite: No
• Temperature Rating: -20 To 100 DEG F
• Tube Size: 2 IN
• Type: Industrial/Residential
