Macomb Group 10037998 1-1/4 Cast C X MPT Union

Product Description

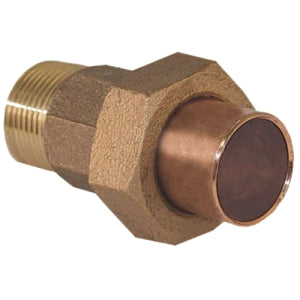

The MACOMB GROUP 10037998 is an industrial/residential solder joint union. This Model 4733-4 union has a 1-1/4 IN tube size and nominal size. Constructed from brass, it features a copper X MNPT connection type. It is designed to withstand a maximum pressure of 435 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Copper X MNPT Connection
• Brass Material
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Compliant with ASME/ANSI B16.18, NSF/ANSI Standard 61, and ROHS 2011/95/EC

Product Highlights

The MACOMB GROUP 10037998 union is compliant with ASME/ANSI B16.18, NSF/ANSI Standard 61, and ROHS 2011/95/EC.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037998

Technical Specifications

• Series/Model: Model 4733-4
• Tube Size: 1-1/4 IN
• Nominal Size: 1-1/4 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Type: Industrial/Residential
