Macomb Group 10037996 Cast C X Mpt Union 1 IN

Product Description

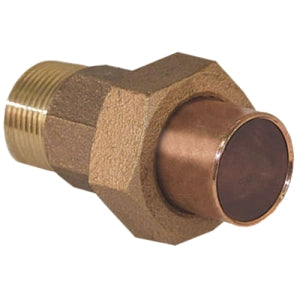

The MACOMB GROUP 10037996 is an industrial/residential solder joint union. This Model 4733-4 union has a 1 IN tube size and a 1 IN nominal size. Constructed from brass, it is designed with a copper X MNPT connection type and can withstand a maximum pressure of 490 PSI. It adheres to industry standards ASME/ANSI B16.18 and NSF/ANSI Standard 61, and is ROHS 2011/95/EC compliant.

• Tube Size: 1 IN
• Maximum Pressure: 490 PSI
• Connection Type: Copper X MNPT

Product Highlights

The MACOMB GROUP 10037996 solder joint union is made of brass and suitable for industrial or residential use.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037996

Technical Specifications

• Series/Model: Model 4733-4
• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
