Macomb Group 10037985 Cast C X Mpt Union 1/4 IN

Product Description

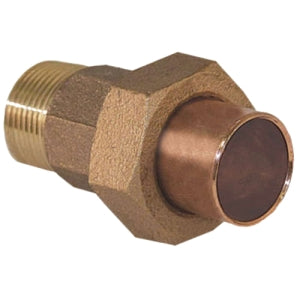

The MACOMB GROUP 10037985 is an industrial/residential solder joint union. This union features a copper X MNPT connection, a tube size of 1/4 IN, and a nominal size of 1/4 IN. Constructed from brass, it withstands a maximum pressure of 910 PSI and temperatures from -20 to 100 DEG F. Compliant with ASME/ANSI B16.18 and NSF/ANSI Standard 61 Certified, and ROHS 2011/95/EC.

• Industrial/Residential Solder Joint Union
• Copper X MNPT Connection
• Maximum pressure: 910 PSI

Product Highlights

The MACOMB GROUP 10037985 union is made of brass and has a 1/4 IN nominal size.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037985

Technical Specifications

• Tube Size: 1/4 IN
• Nominal Size: 1/4 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 910 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
