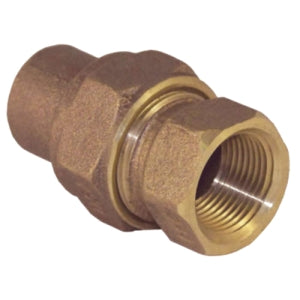

Macomb Group 10037977 Cast C X Fpt Union 2 IN

Product Description

The MACOMB GROUP 10037977 is an industrial/residential solder joint union. This union features a copper X FNPT connection, is made of brass, and is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified, and ROHS 2011/95/EC compliant. It is designed for a maximum pressure of 360 PSI and a temperature range of -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Copper X FNPT Connection
• Tube Size: 2 IN

Product Highlights

The MACOMB GROUP 10037977 union is suitable for industrial and residential applications requiring a reliable solder joint connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037977

Technical Specifications

• Tube Size: 2 IN
• Nominal Size: 2 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Maximum Pressure: 360 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Type: Industrial/Residential
