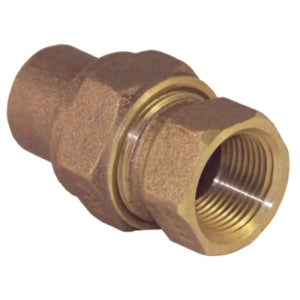

Macomb Group 10037975 Cast C X FPT Union 1-1/2 IN

Product Description

The MACOMB GROUP 10037975 is an industrial/residential solder joint union. This Model 4733-3 union features a 1-1/2 IN tube size and nominal size. Constructed from brass, it offers a copper X FNPT connection type and withstands a maximum pressure of 405 PSI. It is designed to operate in temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Tube Size: 1-1/2 IN
• Maximum Pressure: 405 PSI

Product Highlights

The MACOMB GROUP 10037975 union is ideal for industrial and residential applications requiring a durable and reliable solder joint connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037975

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Type: Industrial/Residential
