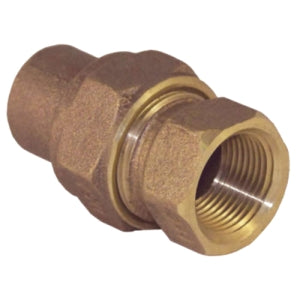

Macomb Group 10037970 Cast C X Fpt Union

Product Description

The MACOMB GROUP 10037970 is an industrial/residential solder joint union. This Model 4733-3 union has a 1 IN tube size and a 1 IN nominal size. Constructed from brass, it features a copper X FNPT connection type and is ASME/ANSI B16.18 and NSF/ANSI Standard 61 certified, and ROHS 2011/95/EC compliant.

• Industrial/Residential Solder Joint Union
• Maximum pressure of 490 PSI
• Temperature rating of -20 to 100 DEG F

Product Highlights

The MACOMB GROUP 10037970 union is made of brass with a copper X FNPT connection. It is suitable for industrial or residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037970

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Item Name: Solder Joint Union
• Type: Industrial/Residential
