Macomb Group 10037969 3/4 Cast C x FPT Union

Product Description

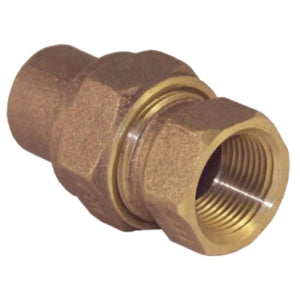

The MACOMB GROUP 10037969 is an industrial/residential solder joint union. Constructed from brass, this union features a Copper X FNPT connection type and is suitable for use in various plumbing applications. It is compliant with ASME/ANSI B16.18, NSF/ANSI Standard 61, and ROHS 2011/95/EC standards.

• Industrial/Residential Solder Joint Union
• Nominal Size: 3/4 IN
• Maximum Pressure: 580 PSI

Product Highlights

This brass solder joint union is designed for industrial and residential use, featuring a Copper X FNPT connection and adherence to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037969

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 3/4 IN
• Nominal Size: 3/4 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Maximum Pressure: 580 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• Cast: Yes
• Lead Free: No
• Type: Industrial/Residential
