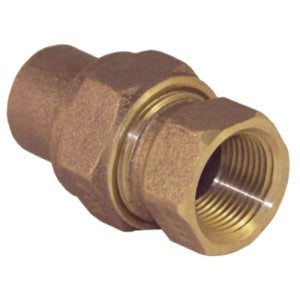

Macomb Group 10037966 3/8 Cast C X FPT Union

Product Description

The MACOMB GROUP 10037966 is an industrial/residential solder joint union. Featuring a copper X FNPT connection, this union is constructed from brass and is suitable for use in a variety of plumbing applications. It conforms to ASME/ANSI B16.18 and NSF/ANSI Standard 61, and is ROHS 2011/95/EC compliant. It can withstand a maximum pressure of 775 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Union
• Copper X FNPT Connection
• Maximum pressure: 775 PSI

Product Highlights

The MACOMB GROUP 10037966 union ensures secure and compliant connections in industrial and residential plumbing systems.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037966

Technical Specifications

• Series/Model: Model 4733-3
• Tube Size: 3/8 IN
• Nominal Size: 3/8 IN
• Connection Type: Copper X FNPT
• Material: Brass
• Maximum Pressure: 775 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified, ROHS 2011/95/EC Compliant
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Union
• Type: Industrial/Residential
