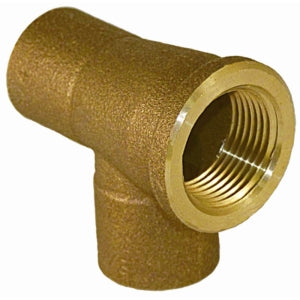

Macomb Group 10037560 Cast C X FPT X C Tee 1-1/2 IN

Product Description

The MACOMB GROUP 10037560 is an industrial/residential solder joint straight tee. This tee features a tube size of 1-1/2 X 1-1/2 IN and a nominal size of 1-1/2 IN. It is constructed from brass and has a copper X FNPT X copper connection type. It is designed to withstand a maximum pressure of 405 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Straight Tee
• Tube Size: 1-1/2 X 1-1/2 IN
• Connection Type: Copper X FNPT X Copper

Product Highlights

The MACOMB GROUP 10037560 tee is made of brass and complies with ASME/ANSI B16.18 and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037560

Technical Specifications

• Tube Size: 1-1/2 X 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Copper X FNPT X Copper
• Material: Brass
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Straight Tee
• Type: Industrial/Residential
