Macomb Group 10037553 Cast C X FPT X C Tee

Product Description

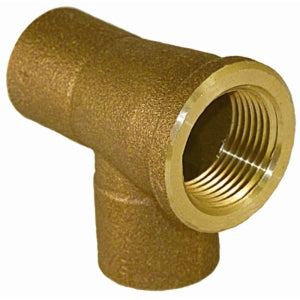

The MACOMB GROUP 10037553 is an industrial/residential solder joint straight tee. Constructed from brass, this tee features a Copper X FNPT X Copper connection type. It is designed for a maximum pressure of 435 PSI and a temperature range of -20 to 100 DEG F. Compliant with ASME/ANSI B16.18 and NSF/ANSI Standard 61 Certified.

• Industrial/Residential Solder Joint Straight Tee
• Brass Material
• Copper X FNPT X Copper Connection Type

Product Highlights

This cast brass solder joint straight tee is suitable for industrial and residential applications. It offers reliable performance within its specified pressure and temperature ranges.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037553

Technical Specifications

• Series/Model: Model 4714
• Tube Size: 1-1/4 X 1-1/4 IN
• Nominal Size: 1-1/4 IN
• Connection Type: Copper X FNPT X Copper
• Material: Brass
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Straight Tee
• Type: Industrial/Residential
