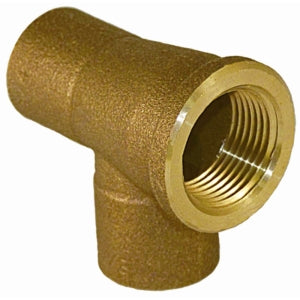

Macomb Group 10037545 Cast C X FPT X C Tee

Product Description

The MACOMB GROUP 10037545 is an industrial/residential solder joint straight tee. Constructed from brass, this tee features a copper X FNPT X copper connection type. It is designed to withstand a maximum pressure of 490 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Straight Tee
• Brass Material
• Copper X FNPT X Copper Connection

Product Highlights

This cast brass solder joint straight tee is suitable for various industrial and residential applications. Adheres to ASME/ANSI B16.18 and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037545

Technical Specifications

• Series/Model: Model 4714
• Tube Size: 1 X 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X FNPT X Copper
• Material: Brass
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
• Item Name: Solder Joint Straight Tee
• Type: Industrial/Residential
