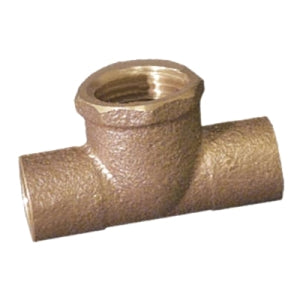

Macomb Group 10037427 Cast C X C X FPT Tee

Product Description

The MACOMB GROUP 10037427 is an industrial/residential solder joint straight tee. This Model 4712 tee features copper x copper x FNPT connection type and is made of brass. It is suitable for use in applications with a maximum pressure of 490 PSI and temperature ratings from -20 to 100 DEG F.

• Industrial/Residential Solder Joint Straight Tee
• Copper X Copper X FNPT Connection
• Certified to ASME/ANSI B16.18, NSF/ANSI Standard 61

Product Highlights

Brass tee with copper x copper x FNPT connection. Suitable for industrial/residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037427

Technical Specifications

• Series/Model: Model 4712
• Tube Size: 1 X 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X Copper X FNPT
• Material: Brass
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
