Macomb Group 10037418 3/4 Cast C X C X FPT Tee

Product Description

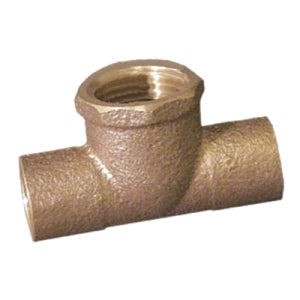

The MACOMB GROUP 10037418 is an industrial/residential solder joint straight tee. This tee, Model 4712, features a Copper X Copper X FNPT connection and is constructed from brass. It is certified to ASME/ANSI B16.18 and NSF/ANSI Standard 61. It is designed for use with a 3/4 inch tube size and has a nominal size of 3/4 inch.

• Industrial/Residential Solder Joint Straight Tee
• Brass Material
• Copper X Copper X FNPT Connection

Product Highlights

The MACOMB GROUP 10037418 tee is made of brass and features a copper x copper x FNPT connection. Suitable for industrial or residential use.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10037418

Technical Specifications

• Series/Model: Model 4712
• Tube Size: 3/4 IN
• Nominal Size: 3/4 IN
• Connection Type: Copper X Copper X FNPT
• Material: Brass
• Maximum Pressure: 580 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Straight Tee
• Type: Industrial/Residential
