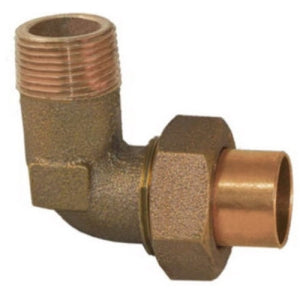

Macomb Group 10035535 Cast C X Mpt Union 90 Ell

Product Description

The MACOMB GROUP 10035535 is an industrial/residential solder joint 90 DEG union elbow. Featuring a copper x MNPT connection, this elbow is constructed from brass and is suitable for use in various plumbing applications. It conforms to ASME/ANSI B16.18 and NSF/ANSI Standard 61. It is designed to withstand a maximum pressure of 490 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• 90 DEG Union Elbow
• Copper X MNPT Connection

Product Highlights

Brass construction ensures durability. Suitable for industrial and residential applications. Adheres to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10035535

Technical Specifications

• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
• Item Name: Solder Joint 90 DEG Union Elbow
• Type: Industrial/Residential
