Macomb Group 10035534 Cast C X MPT Union 90 Ell

Product Description

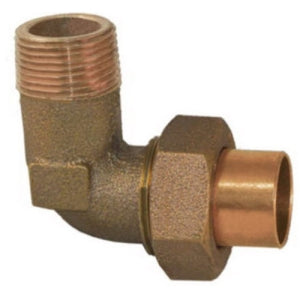

The MACOMB GROUP 10035534 is an industrial/residential solder joint 90 DEG union elbow. This model 4707-4-6 has a tube size and nominal size of 3/4 IN. It features a copper X MNPT connection type and is constructed from brass. It is ASME/ANSI B16.18 and NSF/ANSI Standard 61 Certified.

• Industrial/Residential Solder Joint
• 90 DEG Union Elbow
• Maximum pressure of 580 PSI

Product Highlights

The MACOMB GROUP 10035534 union elbow ensures secure connections in plumbing and industrial applications with its durable brass construction.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10035534

Technical Specifications

• Series/Model: Model 4707-4-6
• Tube Size: 3/4 IN
• Nominal Size: 3/4 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 580 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Item Name: Solder Joint 90 DEG Union Elbow
• Type: Industrial/Residential
