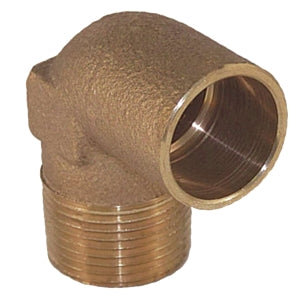

Macomb Group 10035386 Cast C X MPT 90 Ell 1-1/2 IN

Product Description

The MACOMB GROUP 10035386 is an industrial/residential solder joint 90 DEG elbow. It has a tube and nominal size of 1-1/2 IN and features a copper X MNPT connection type. Constructed from brass, it withstands a maximum pressure of 405 PSI and a temperature range of -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• 90 DEG Elbow
• Connection Type: Copper X MNPT

Product Highlights

The MACOMB GROUP 10035386 is a brass solder joint 90 DEG elbow suitable for industrial/residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10035386

Technical Specifications

• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
• Item Name: Solder Joint 90 DEG Elbow
• Type: Industrial/Residential
