Macomb Group 10035376 Cast C X MPT 90 Ell 1 IN

Product Description

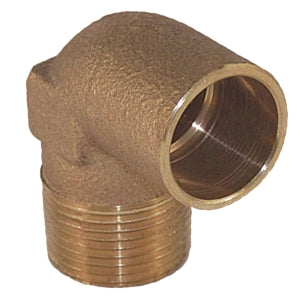

The MACOMB GROUP 10035376 is an industrial/residential solder joint 90-degree elbow. Featuring a 1-inch tube size and nominal size, it is constructed from brass material. This elbow offers a copper X MNPT connection type and withstands a maximum pressure of 490 PSI. It is designed to operate in temperatures ranging from -20 to 100 degrees Fahrenheit.

• Industrial/Residential Solder Joint
• 90 DEG Elbow
• Brass Material
• Copper X MNPT Connection

Product Highlights

The MACOMB GROUP 10035376 is a cast brass solder joint 90-degree elbow with a copper X MNPT connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10035376

Technical Specifications

• Tube Size: 1 IN
• Nominal Size: 1 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
• Item Name: Solder Joint 90 DEG Elbow
• Type: Industrial/Residential
