Macomb Group 10035365 1/2 cast C x MPT 90 ell

Product Description

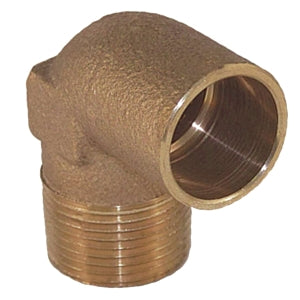

The MACOMB GROUP 10035365 is an industrial/residential solder joint 90 DEG elbow. It features a copper X MNPT connection type and is constructed from brass. This elbow is suitable for use in various plumbing and piping applications. It conforms to ASME/ANSI B16.18 and NSF/ANSI Standard 61 Certified.

• Industrial/Residential Solder Joint
• 90 DEG Elbow
• Copper X MNPT Connection

Product Highlights

The MACOMB GROUP 10035365 is a brass solder joint 90-degree elbow with a copper X MNPT connection, designed for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10035365

Technical Specifications

• Tube Size: 1/2 IN
• Nominal Size: 1/2 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 720 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint 90 DEG Elbow
• Type: Industrial/Residential
