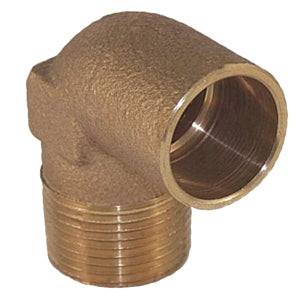

Macomb Group 10035360 3/8 Cast C x Mpt 90 Ell

Product Description

The MACOMB GROUP 10035360 is an industrial/residential solder joint 90-degree elbow. It features a copper x MNPT connection type and is constructed from brass. This elbow is suitable for use in various plumbing and heating applications. It conforms to ASME/ANSI B16.18 and NSF/ANSI Standard 61.

• Industrial/Residential Solder Joint 90 DEG Elbow
• Tube Size: 3/8 IN
• Maximum Pressure: 775 PSI

Product Highlights

This 3/8 inch cast elbow is made of brass and features a copper x MNPT connection. It is rated to 775 PSI and conforms to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10035360

Technical Specifications

• Tube Size: 3/8 IN
• Nominal Size: 3/8 IN
• Connection Type: Copper X MNPT
• Material: Brass
• Maximum Pressure: 775 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: Yes
• Wrot: No
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint 90 DEG Elbow
• Type: Industrial/Residential
