Macomb Group 10034885 Cast C X C X C X C Cross 1-1/2 IN

Product Description

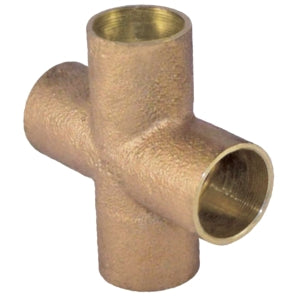

The MACOMB GROUP 10034885 is an industrial/residential solder joint cross. This Model 4735 cross features copper connections and is constructed from brass alloy. It is designed to withstand a maximum pressure of 405 PSI and temperatures ranging from -20 to 100 DEG F. Compliant with ASME/ANSI B16.18 and NSF/ANSI Standard 61 Certified.

• Industrial/Residential Solder Joint Cross
• Copper Connection
• Brass Alloy Material
• Maximum Pressure: 405 PSI

Product Highlights

The MACOMB GROUP 10034885 is a durable and reliable solder joint cross suitable for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10034885

Technical Specifications

• Series/Model: Model 4735
• Tube Size: 1-1/2 IN
• Connection Type: Copper
• Material: Brass Alloy
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: ASME/ANSI B16.18, NSF/ANSI Standard 61 Certified
• Cast: Yes
• Lead Free: No
• Item Name: Solder Joint Cross
• Type: Industrial/Residential
