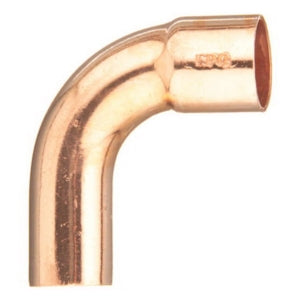

Macomb Group 10031792 1/4 Wrot Copper Lt St 90 Ell

Product Description

The MACOMB GROUP 10031792 is an industrial/residential solder joint 90 DEG long turn street elbow. Constructed from copper, this elbow features a 1/4 IN tube size and 3/8 IN outside diameter. It is designed to withstand a maximum pressure of 910 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• 90 Degree Long Turn Street Elbow
• Copper Construction

Product Highlights

This wrot copper elbow is suitable for various applications, meeting industry standards such as MSS-SP-104 and ASME/ANSI B16.22.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031792

Technical Specifications

• Tube Size: 1/4 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 3/8 IN
• Maximum Pressure: 910 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint 90 DEG Long Turn Street Elbow
• Type: Industrial/Residential
