Macomb Group 10031756 3 Wrot C X C Long Turn 90 Ell

Product Description

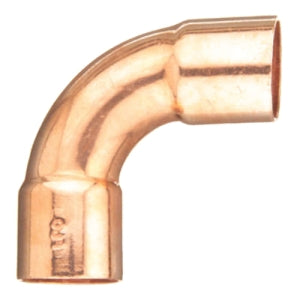

The MACOMB GROUP 10031756 is an industrial/residential solder joint long turn 90 DEG elbow. This elbow, from the Model 107L series, features a copper connection and is constructed from copper. It has an outside diameter of 3-1/8 IN and is designed to withstand a maximum pressure of 315 PSI. It is suitable for temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Long Turn 90 DEG Elbow
• Compliant with Industry Standards MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61

Product Highlights

The MACOMB GROUP 10031756 is a durable copper elbow suitable for industrial and residential applications, featuring a long turn 90-degree design.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031756

Technical Specifications

• Series/Model: Model 107L
• Tube Size: 3 IN
• Connection Type: C X C
• Material: Copper
• Outside Diameter: 3-1/8 IN
• Maximum Pressure: 315 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Long Turn 90 DEG Elbow
• Type: Industrial/Residential
