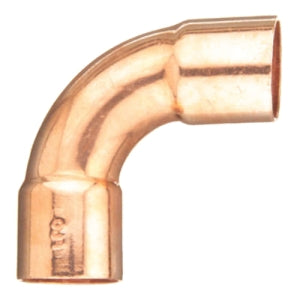

Macomb Group 10031740 2 Wrot C X C Long Turn 90 Ell

Product Description

The MACOMB GROUP 10031740 is an industrial/residential solder joint long turn 90-degree elbow. Constructed from copper, this 2-inch tube size elbow is suitable for various applications. It conforms to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61 Certified and can withstand a maximum pressure of 360 PSI. It can operate in temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Long Turn 90 DEG Elbow
• 2 IN Tube Size

Product Highlights

Copper construction ensures durability. Suitable for industrial and residential applications. Complies with industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031740

Technical Specifications

• Series/Model: Model 107L
• Tube Size: 2 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 2-1/8 IN
• Maximum Pressure: 360 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: No
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Long Turn 90 DEG Elbow
• Type: Industrial/Residential
