Macomb Group 10031708 Wrot C X C Long Turn 90 Ell 1 IN

Product Description

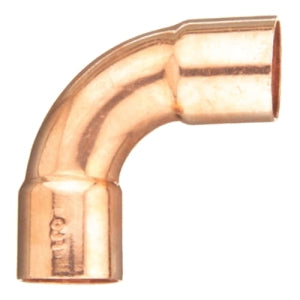

The MACOMB GROUP 10031708 is an industrial/residential solder joint long turn 90 DEG elbow. This elbow features a 1 IN tube size and is made of copper. It is designed for solder joint connections and can withstand a maximum pressure of 490 PSI. It conforms to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

• Industrial/Residential Solder Joint
• Long Turn 90 DEG Elbow
• 1 IN Tube Size

Product Highlights

The MACOMB GROUP 10031708 is a copper, solder joint elbow suitable for industrial and residential applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031708

Technical Specifications

• Tube Size: 1 IN
• Connection Type: Solder Joint
• Material: Copper
• Outside Diameter: 1-1/8 IN
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Long Turn 90 DEG Elbow
• Type: Industrial/Residential
