Macomb Group 10031684 5/8 wrot c x c long turn 90 ell

Product Description

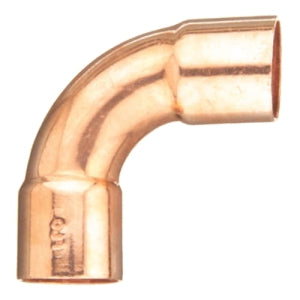

The MACOMB GROUP 10031684 is an industrial/residential solder joint long turn 90-degree elbow. Constructed from copper, it features a 5/8 IN tube size and a 3/4 IN outside diameter. It is designed to withstand a maximum pressure of 630 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Long Turn 90 DEG Elbow
• Complies with Industry Standards MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified

Product Highlights

This copper elbow fitting is ideal for plumbing applications requiring a durable and code-compliant connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031684

Technical Specifications

• Tube Size: 5/8 IN
• Connection Type: C x C (Copper x Copper)
• Material: Copper
• Outside Diameter: 3/4 IN
• Maximum Pressure: 630 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Long Turn 90 DEG Elbow
• Type: Industrial/Residential
