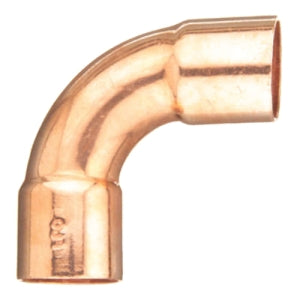

Macomb Group 10031668 1/4 Wrot C X C Long Turn 90 Ell

Product Description

The MACOMB GROUP 10031668 is an industrial/residential solder joint long turn 90-degree elbow. Constructed from copper, it features a 1/4 IN tube size and a 3/8 IN outside diameter. It is designed to withstand a maximum pressure of 910 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Long Turn 90 DEG Elbow
• Compliant with Industry Standards MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified

Product Highlights

Copper construction ensures durability. Suitable for various industrial and residential applications requiring a 90-degree turn.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031668

Technical Specifications

• Tube Size: 1/4 IN
• Connection Type: C X C
• Material: Copper
• Outside Diameter: 3/8 IN
• Maximum Pressure: 910 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Item Name: Solder Joint Long Turn 90 DEG Elbow
• Type: Industrial/Residential
